H3 Nickel Plated Alloy Steel S Beam Load Cell

Product Categories
Shanghai Conhon Electronic&Technology Co.,Ltd.
Contact Now

H3 Nickel Plated Alloy Steel S Beam Load Cell

Brand Name : ZEMIC

Model Number : H3

Certification : CE

Place of Origin : CHINA

MOQ : 100

Price : ￥800-10000/pcs

Payment Terms : T/T

Supply Ability : 99999+pc+1m

Delivery Time : 2-4weeks

Safe Temp. Range : -10ºC to + 70ºC

Temp. Compensated : -10ºC to + 40ºC

Rated Excitation : 10V DC/AC

Maximum Excitation : 15V DC/AC

Cable Color Code : Red(+E) Black(-E) Green(+S) White(-S)

Rated Output : 2.0mV/V ±0.1% / 3.0mV/V ±0.1%

Contact Now

H3 S Type High Precision Nickel Plated Alloy Steel Load Cell

- Nickel plated alloy steel IP67 "S" type load cell

- Tension and compression applications

- Suitable for hanging, hopper and other weighing devices

- Also available in imperial capacities and dimensions

Available Models

Capacity Accuracy Full Article Description
25kg C3 Excluded from OIML H3-C3-25kg-3B
50kg C3 Excluded from OIML H3-C3-50kg-3B
100kg C3/C4 H3-C3/C4-100kg-3B
150kg C3/C4 H3-C3/C4-150kg-3B
200kg C3/C4 H3-C3/C4-200kg-3B
250kg C3/C4 H3-C3/C4-250kg-3B
300kg C3/C4 H3-C3/C4-300kg-3B
500kg C3/C4 H3-C3/C4-500kg-3B
600kg C3/C4 H3-C3/C4-600kg-3B
750kg C3/C4 H3-C3/C4-750kg-3B
1t C3/C4 H3-C3/C4-1t-3B
1.5t C3/C4 H3-C3/C4-1.5t-3B
2t C3/C4 H3-C3/C4-2t-3B
2.5t C3/C4 H3-C3/C4-2.5t-3B
3t C3 Excluded from OIML H3-C3-3t-3B
5t C3 Excluded from OIML H3-C3-5t-3B
7.5t C3 Excluded from OIML H3-C3-7.5t-3B
10t C3 Excluded from OIML H3-C3-10t-3B
15t C3 Excluded from OIML H3-C3-15t-3B
20t C3 Excluded from OIML H3-C3-20t-3B
30t C3 Excluded from OIML H3-C3-30t-3B

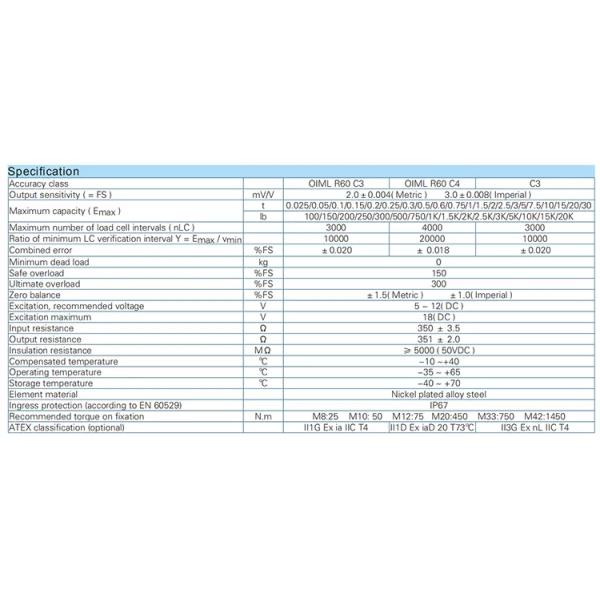

Specifications

H3 Nickel Plated Alloy Steel S Beam Load Cell

Dimensions and Wiring

H3 Nickel Plated Alloy Steel S Beam Load Cell
